Reverse Engineering Services

Scan to CAD service

Have you needed to make new tools for legacy parts, only to find out that there is no up-to-date CAD model available? Reverse engineering a part from scratch using traditional measurement methods can be time-consuming and risky. With industrial CT scanning, we can quickly reverse engineer legacy parts to provide you with new and highly accurate CAD models.

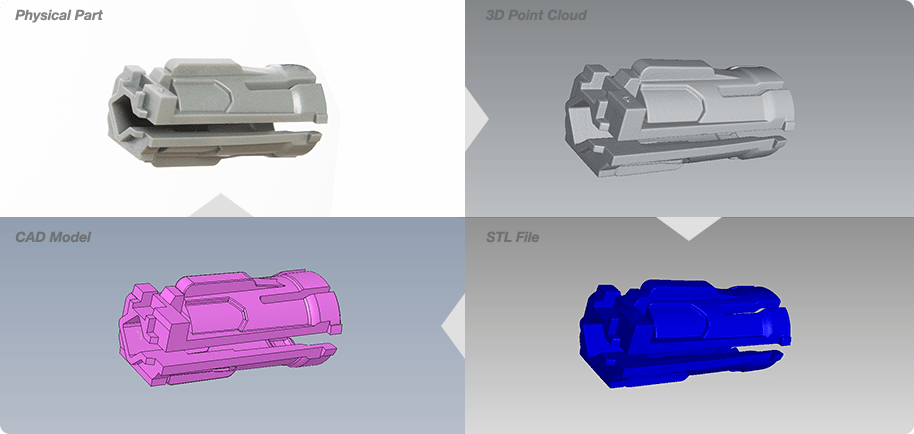

How it works: By CT scanning a part we capture hundreds of thousands of data points, including features that are hard to measure, and generate a 3D point cloud which we then convert to an STL file with over 2 million triangles. This STL file is then converted to a new CAD file for building a new component.

What you will receive: A CAD model in the format of your choice (.STL, .STEP, .IGS, .SLDPRT). New 2D drawings can also be provided.

computer visualization of product and measurements by cmm commercial scanning

CT Scanning Capabilities:

All objects must be within a 5" diameter, and up to 15" in height.

Request Reverse Engineering Quote
